Awabot Pro robot - Unit assembly

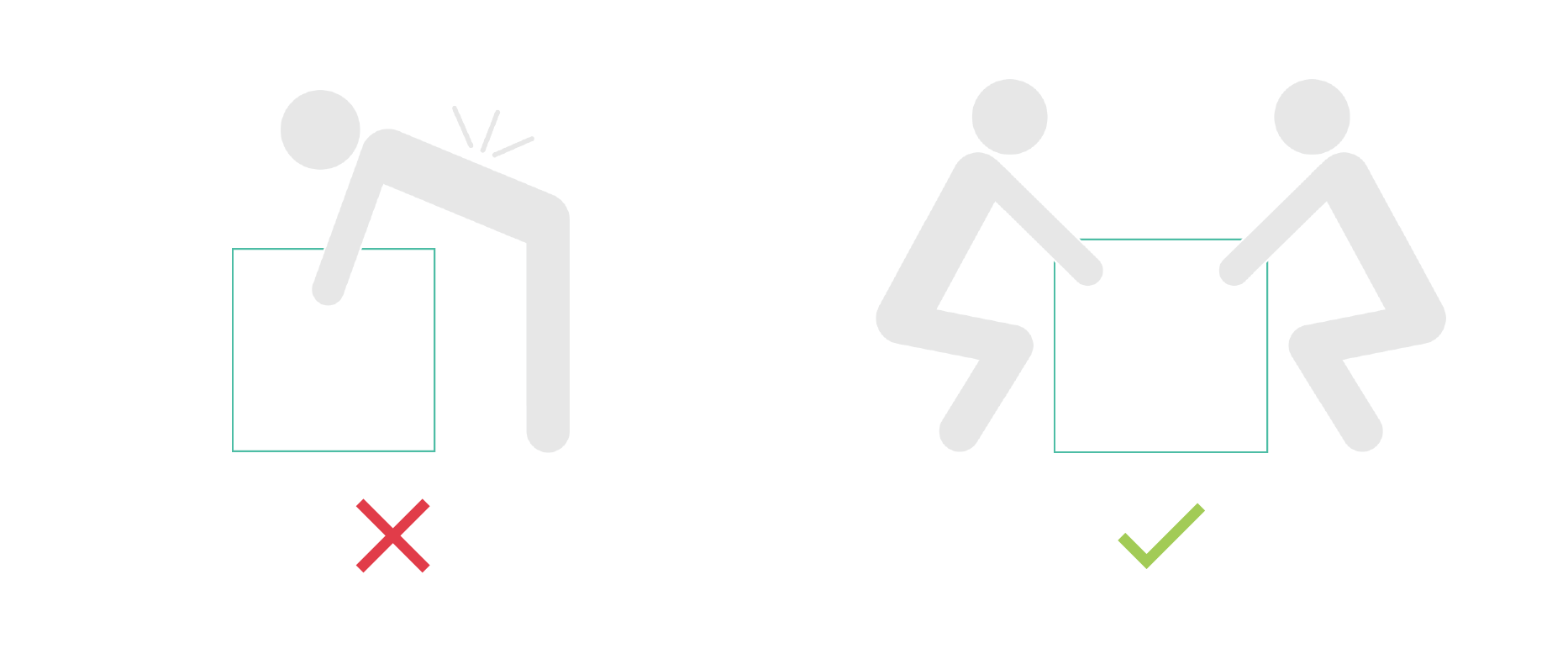

Assembly requires two people to ensure the components are handled safely.

Required components

• Awabot Pro Head & Base
• Charging Dock & Power Cable
• USB Keyboard

Assembly steps

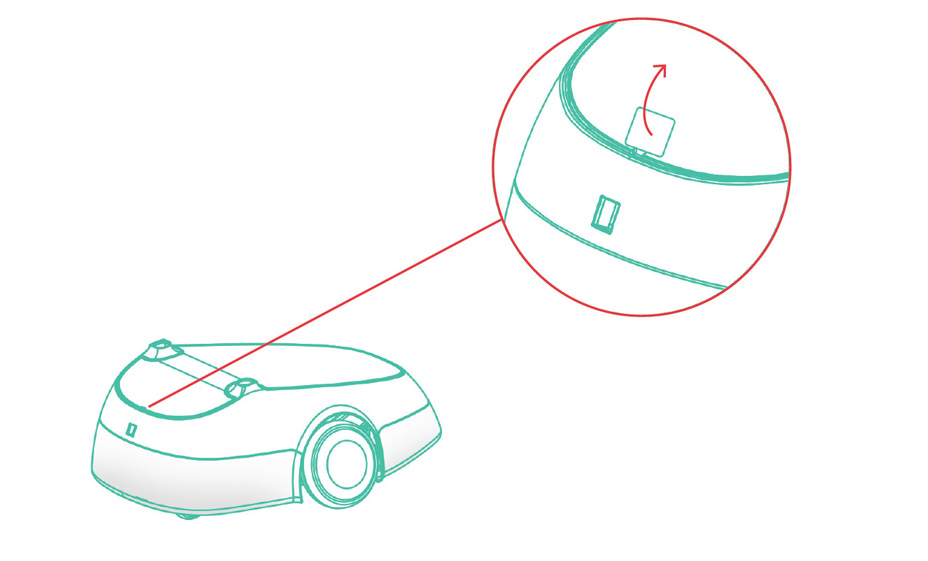

1. Open base: Pull the tag to open the base lid.

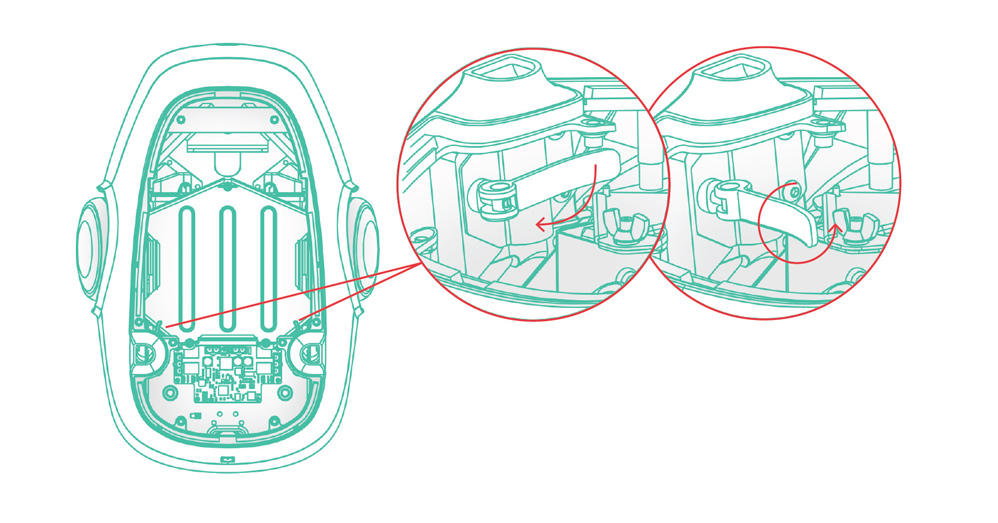

2. Loosen levers: Loosen the levers on both sides of the base.

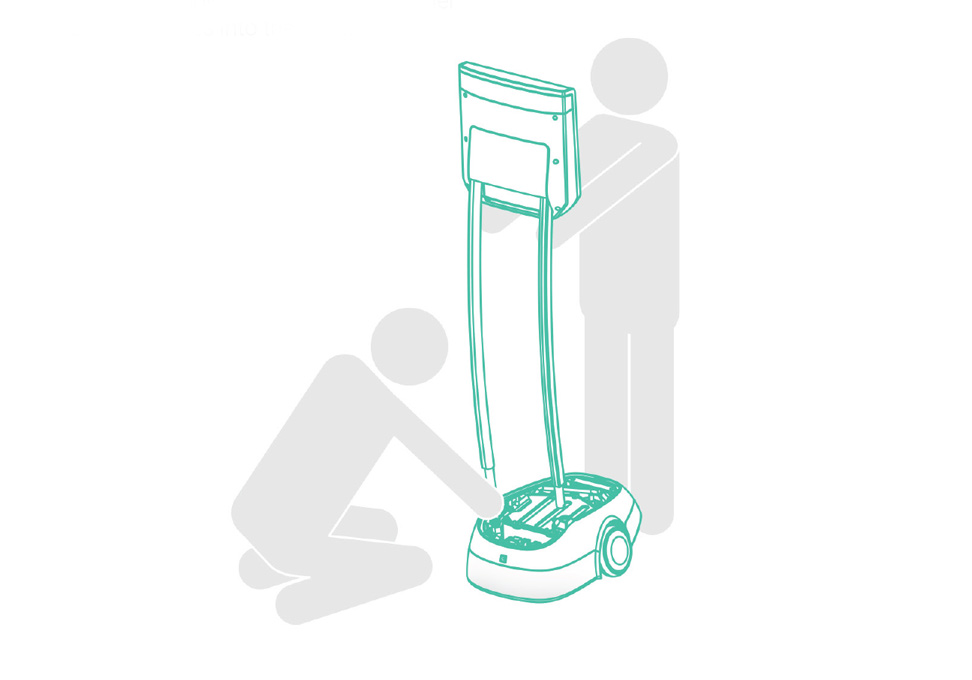

3. Align & feed: Align the head legs to the holders. One person holds the head while the other feeds the wires into the base.

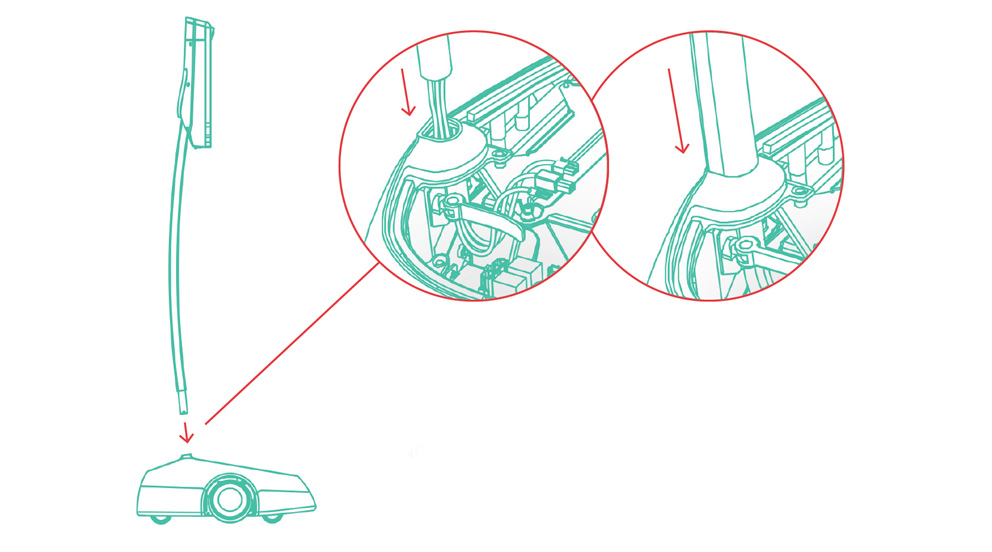

4. Slide into place: Pull wires through and slide the head down. Caution: Do not pinch the wires.

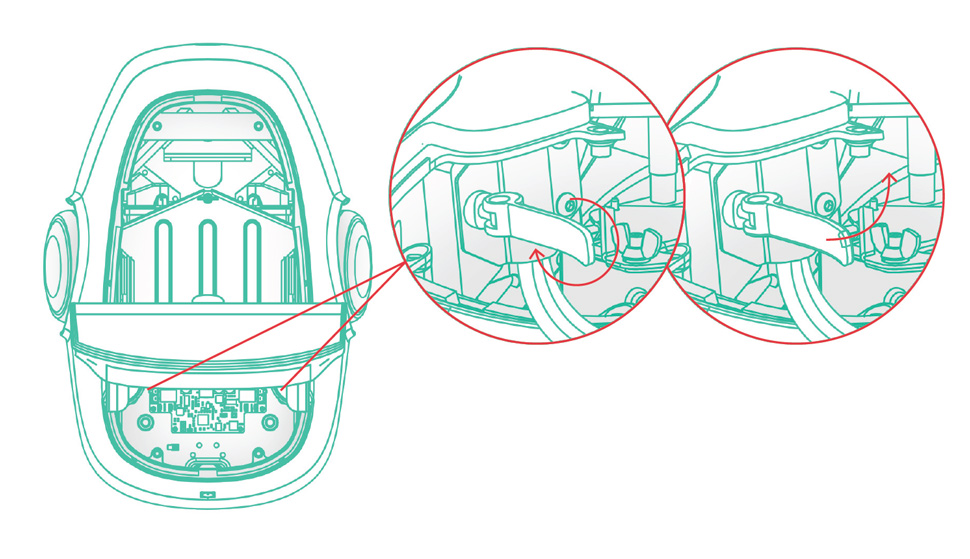

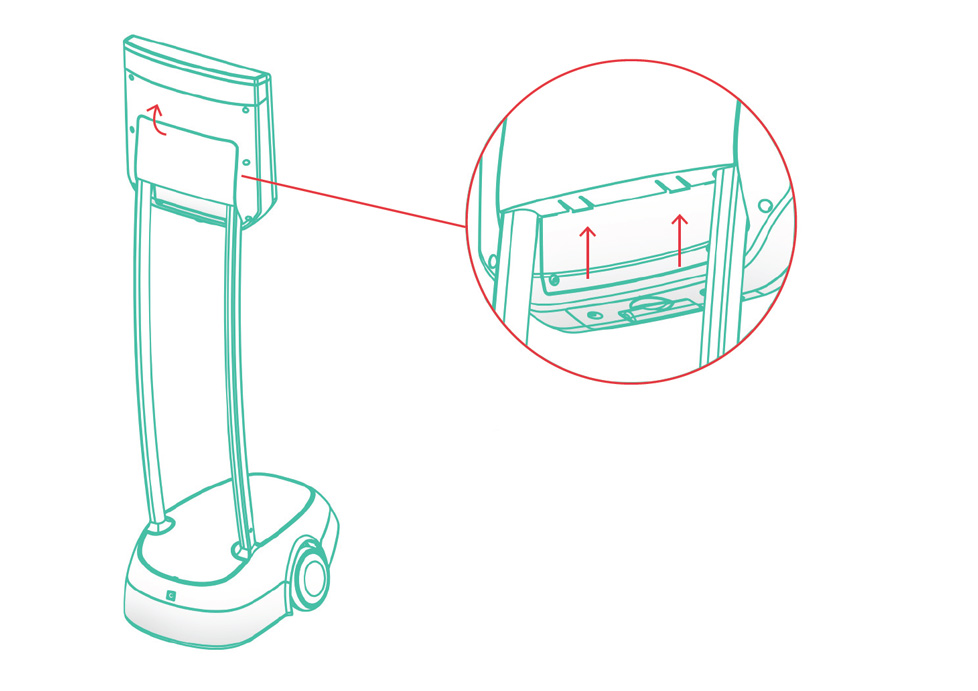

5. Secure: Tighten the handles to lock the legs and head in place.

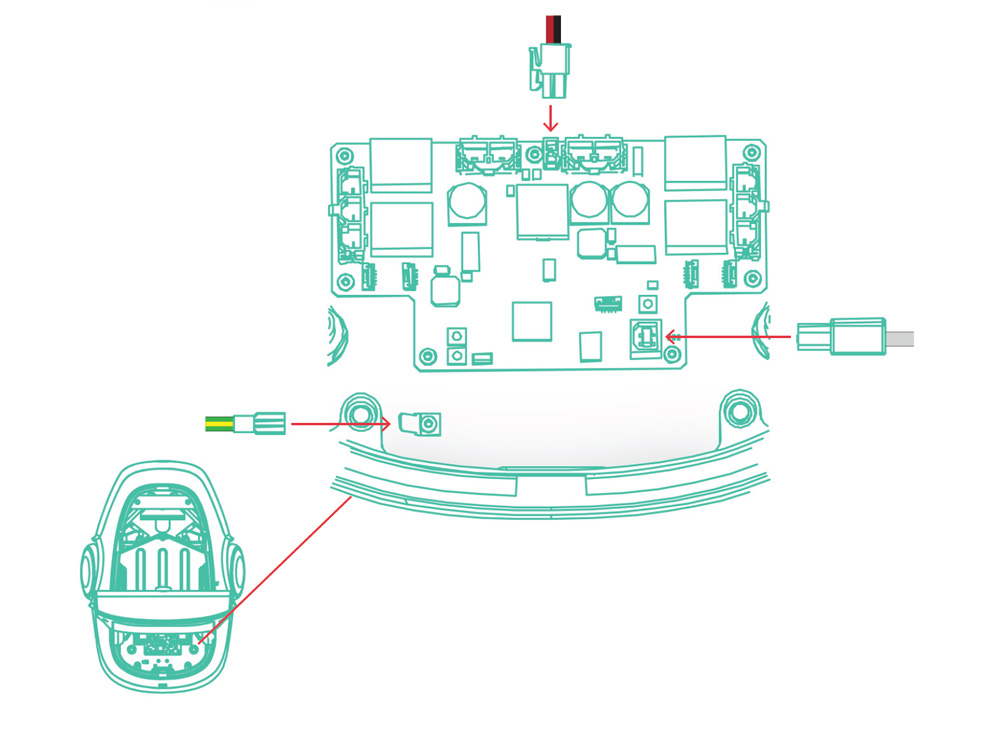

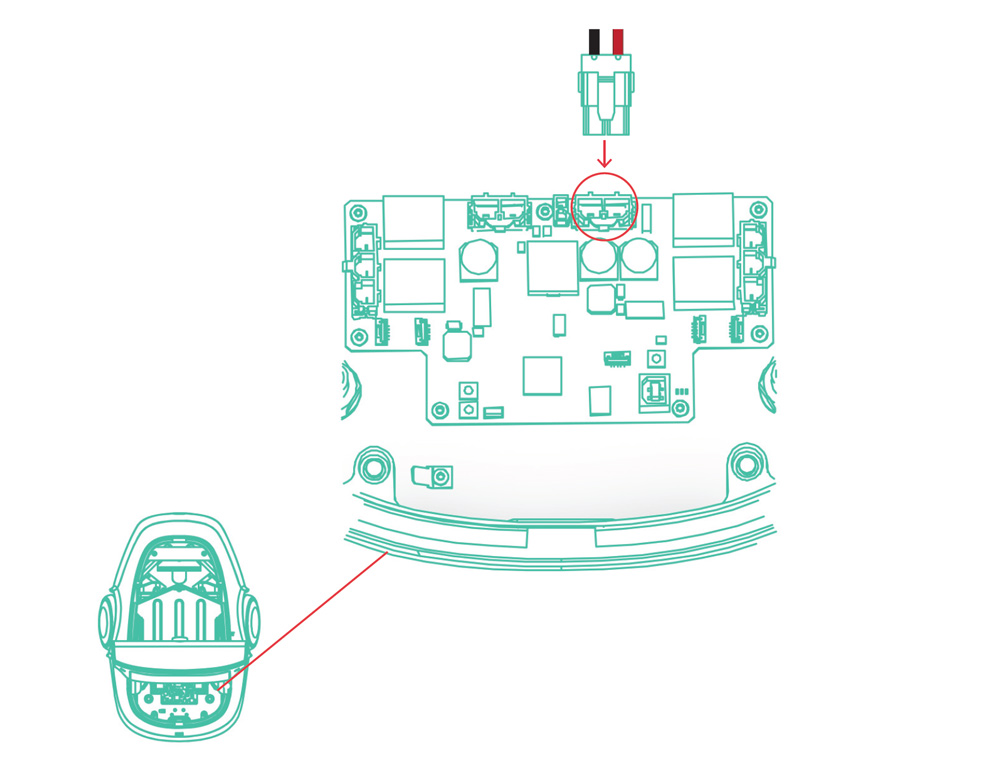

6. Connect cables: Connect the data, ground, and battery cables.

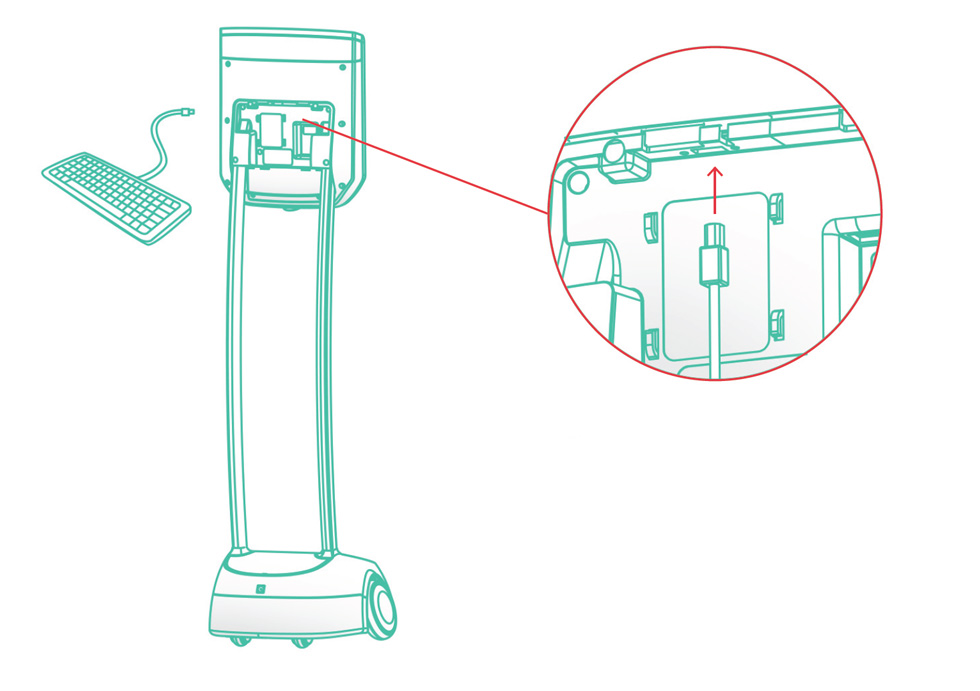

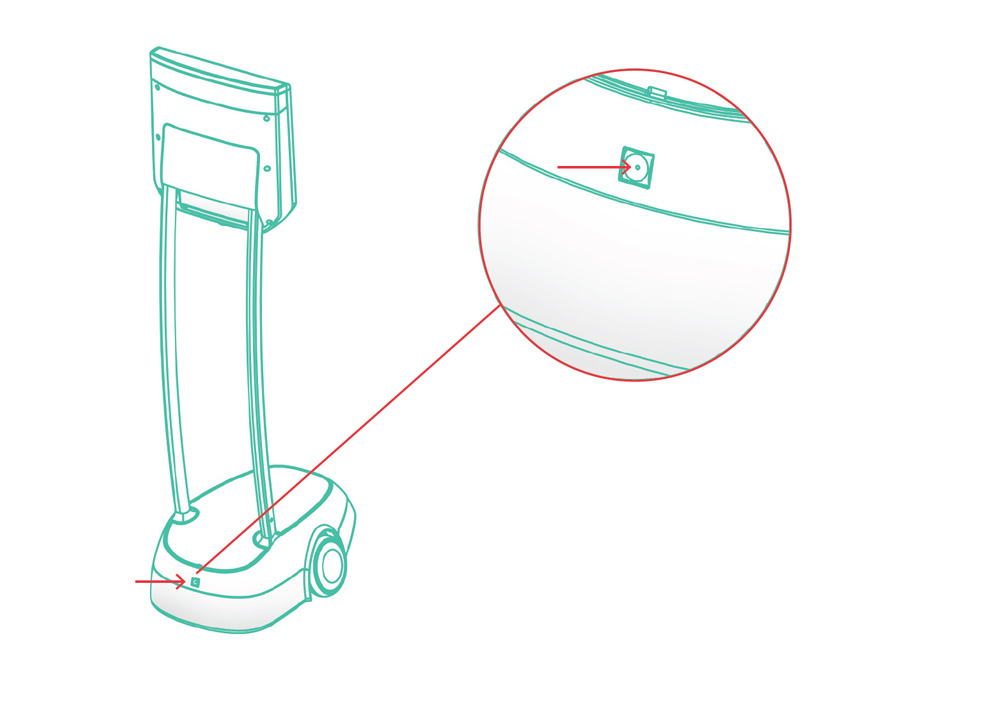

7. Configure: Replace the base lid and power on. Plug in the keyboard on the robot's USB port, and follow the on-screen prompts.

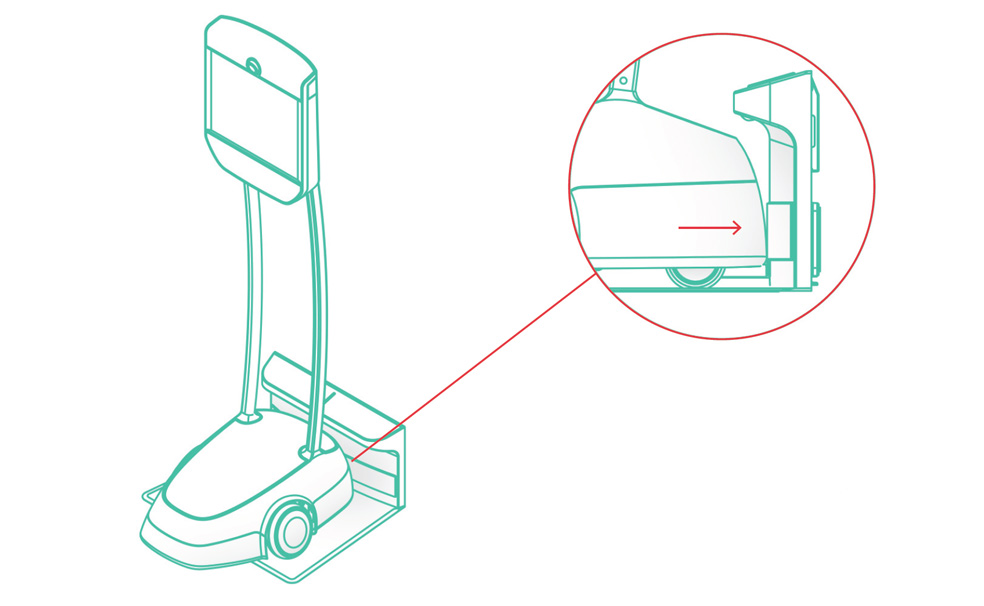

8. Charge: Guide the robot onto the dock. The dock light will turn Green when charging.
